Adjusting Schwinn Mountain Bike Brakes: A Simple Guide

Last Updated on September 20, 2026 by Md Arifur rahman

Adjusting the brakes on your Schwinn mountain bike is a straightforward process you can do yourself. You’ll typically need to tighten or loosen the brake cable to get them working just right. This ensures you can stop safely and confidently on any trail.

Properly adjusted brakes are essential for your safety. Loose brakes might not stop you in time. Worn brake pads can also cause problems. We found that a few simple adjustments can make a big difference in your bike’s performance.

• Check brake pad wear.
• Adjust cable tension.
• Ensure smooth lever action.
• Test your brakes after adjustment.

Let’s walk through exactly how to adjust your Schwinn mountain bike brakes, step by step, so you can get back to riding with confidence.

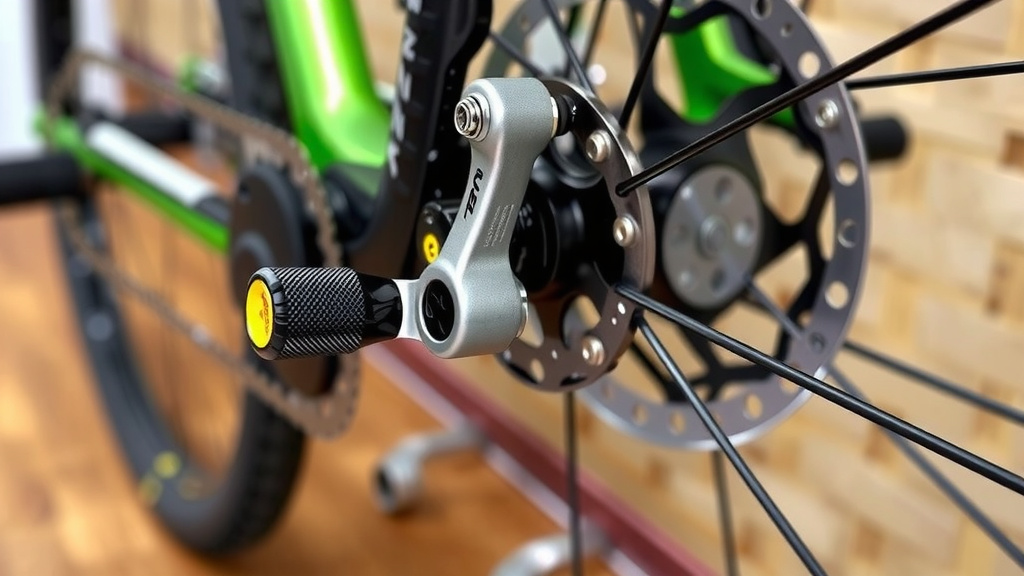

Getting Your Schwinn Mountain Bike Brakes Dialed In

So, your Schwinn mountain bike brakes aren’t quite hitting the mark? It’s a common hiccup. Often, it just means your brake cable tension needs a little tweak. We’ve found that a few simple adjustments can bring your stopping power back to life, making your rides safer and more enjoyable. Let’s get those brakes feeling sharp again!

First Things First: Inspect Your Brake Pads

Before you even think about touching a cable, take a peek at your brake pads. They’re the hardworking heroes that grip your rims (or rotors, if you have disc brakes) to slow you down. If they look worn down, almost flat, or have deep grooves, they won’t be very effective.

How to Check for Wear

For rim brakes, you’ll see the pads pressing against the metal rim. Look for a wear indicator line molded into the pad. If the pad surface is worn down to or past this line, it’s time for new ones. It’s like checking the tread on your car tires; worn-out pads mean reduced grip.

If you have disc brakes, you’ll see the pads inside the caliper, squeezing the rotor. You should be able to see a good amount of pad material. Many disc brake pads have a minimum thickness recommendation, often around 1mm. If they look very thin, they might be past their prime. We found that worn pads are a surprisingly common reason for weak braking.

Replacing Brake Pads (If Needed)

If your pads are shot, replacing them is usually a pretty simple job. You’ll typically need a small wrench or Allen key to loosen the bolt holding the pad in place. Slide the old pad out, slide the new one in, and tighten the bolt. Make sure the new pads are aligned correctly with the rim or rotor. Many bike shops can help with this if you’re not comfortable doing it yourself.

Adjusting Cable Tension: The Heart of the Matter

Most Schwinn mountain bikes use V-brakes or caliper brakes, which rely on cables to pull the brake arms. The tension of these cables is key to how your brakes feel. Too loose, and you’ll have a long, spongy lever pull with weak stopping power. Too tight, and your brakes might drag, making it hard to pedal.

Locating the Adjuster Barrel

You’ll find the main cable tension adjuster, often called an “adjuster barrel,” right where the brake cable housing screws into the brake caliper or lever arm. It looks like a small, knurled cylinder that you can twist. Some bikes also have a smaller adjuster barrel on the brake lever itself.

Tightening the Cable (For Better Stopping Power)

If your brake lever pulls too far back to the handlebar, you need to tighten the cable. To do this, you’ll turn the adjuster barrel counter-clockwise. Think of it like unscrewing a lid. Give it one or two full turns at first. After each adjustment, squeeze the brake lever to see how it feels. You’re aiming for a lever that feels firm and stops the wheel well before it hits the handlebar.

Loosening the Cable (If Brakes Drag)

Conversely, if your brakes feel too tight, or if the wheel doesn’t spin freely because the pads are always touching, you need to loosen the cable. To do this, turn the adjuster barrel clockwise. Again, start with a turn or two. This allows the brake pads to retract further from the rim or rotor. You want just enough clearance so the wheel spins freely, but not so much that the lever feels mushy.

The Quick-Release Lever (For Wheel Removal)

Almost all V-brakes and caliper brakes have a small lever or “quick-release” mechanism. This is usually on the brake caliper itself. When you flip this lever up, it temporarily disconnects the brake cable, allowing the brake arms to spread wide apart. This is super handy for taking your wheel off and putting it back on without having to fight the brake pads.

Make sure this lever is flipped down and securely engaged after you’ve put your wheel back on. If it’s left up, your brakes won’t work! We found that forgetting to flip this down is a common mistake for new riders.

Checking for Straightness

Sometimes, the issue isn’t cable tension but that the brake arms themselves are misaligned. For rim brakes, you want the brake pads to hit the rim squarely, not at an angle. If they’re crooked, they won’t grip effectively and can cause uneven wear.

Many brake calipers have tiny adjustment screws on the side. These allow you to fine-tune the position of the brake arms. Turning these screws in or out will slightly shift the brake caliper. It’s a bit like nudging a picture frame on the wall to make it hang straight. Consult your Schwinn manual or a bike repair guide for the specifics on your exact brake model.

Disc Brake Adjustments: A Different Beast

If your Schwinn mountain bike has disc brakes, the adjustment process is a little different. Instead of cable tension, you’re often dealing with caliper alignment and sometimes pad spacing.

Caliper Alignment

The most common disc brake issue is a rubbing sound. This usually means the brake pads are slightly touching the rotor. To fix this, you’ll often need to loosen the two bolts that attach the brake caliper to the bike frame slightly.

With the bolts loose, squeeze the brake lever firmly. While holding the lever squeezed, re-tighten those two caliper bolts. This action should help center the caliper over the rotor. Release the lever and spin the wheel to check if the rubbing has stopped. This method is widely recommended by brake manufacturers (Shimano, SRAM, etc.).

Pad Reset (If Needed)

If centering doesn’t solve the rubbing, your pistons might be sticking out too far. You can try to gently push the pistons back into the caliper. Some systems use a special tool, while others can be pushed back with a plastic tire lever or even a flathead screwdriver (be careful not to damage the pad!). This pushes the brake pads back, giving you more clearance. We found this step is often needed after replacing pads.

The All-Important Test Ride Checklist

After making any adjustments, it’s vital to test your brakes thoroughly. Don’t just hop on and hit the nearest hill!

• Spin your wheel. Does it rotate freely without the brake pads dragging?
• Squeeze your brake lever. Does it feel firm? Does it stop the wheel effectively?
• Test the brakes at slow speeds on a flat, safe surface.
• Gently test them on a slight incline, then a steeper one if you feel confident.
• Listen for any unusual noises, like grinding or squealing.

We suggest a simple checklist:

• Check Pad Wear: Ensure pads aren’t worn down.
• Adjust Cable Tension: Twist adjuster barrels for firm lever feel.
• Verify Alignment: Make sure pads hit rim/rotor squarely.
• Test Quick-Release: Confirm it’s engaged for riding.
• Spin Wheel Freely: Listen for any brake drag.
• Slow-Speed Test: Brake gently in a safe area.

Taking a few minutes to properly adjust your Schwinn mountain bike brakes will make a world of difference on your next ride. Happy trails!

Conclusion

You’ve learned how to keep your Schwinn mountain bike brakes in top shape! We’ve covered checking your brake pads for wear and understanding when they need replacing. You now know how to adjust your cable tension using the adjuster barrels for that perfect lever feel. Remember to also check caliper alignment, especially for disc brakes, and to always test your brakes after any adjustments. Taking these steps ensures your bike stops when you need it to, keeping your rides safe and enjoyable. So, head out to your garage and give your brakes a little attention – your next trail ride will thank you for it!

Frequently Asked Questions

How often should I adjust my bike brakes?

We recommend checking your brake pad wear every few months, or more often if you ride in wet or dirty conditions. Adjusting cable tension might be needed more frequently, perhaps once or twice a year, depending on how much you ride and how the levers feel. It’s good practice to check them before any major ride.

What if my brake lever feels mushy even after adjusting the cable?

A mushy lever can sometimes indicate a few things. You might have air in your brake lines if you have hydraulic disc brakes, which requires bleeding. For cable brakes, it could mean the cable itself is stretching, or the housing is worn. We’ve found replacing the cable and housing can often solve this.

Can I adjust my disc brakes with just a screwdriver?

For minor caliper adjustments on disc brakes, you might use a screwdriver or hex key to loosen and re-tighten the caliper bolts. However, if you need to reset the pistons, it’s best to use a dedicated pad spreader tool or a plastic tire lever to avoid damaging the brake pads or pistons. Always be gentle.

My brakes squeal loudly, what’s wrong?

Squealing brakes are often caused by contaminated brake pads or rotors, or simply worn-out pads. For rim brakes, ensure the pads are hitting the rim squarely. For disc brakes, try cleaning your rotors and pads with isopropyl alcohol. If the squealing persists, it’s often time to replace the brake pads, especially if they are glazed.

How do I know if my brake pads are too worn out?

For rim brake pads, look for a wear indicator line molded into the pad. If the pad surface is worn down to or past this line, they need replacing. For disc brake pads, visually inspect the pad material thickness; if it looks very thin (around 1mm or less), it’s time for new ones. Reduced stopping power is also a clear sign.
