Adjust Your Mountain Bike Derailleur: A Quick Guide

Last Updated on September 20, 2026 by Md Arifur rahman

Adjusting your mountain bike’s derailleur is totally doable and will make your rides way smoother. You can fix common shifting problems by adjusting the limit screws and cable tension. This often resolves issues like the chain skipping or not landing on certain gears.

Getting your gears to shift perfectly makes a big difference on the trail. A well-tuned derailleur means less frustration and more focus on enjoying your ride. Many riders find they can tackle more challenging terrain with confident shifting. Proper adjustment means your bike is more reliable and more fun.

• Derailleur adjustment fixes skipping chains.
• Limit screws control gear range.
• Cable tension fine-tunes shifting precision.
• Regular checks keep gears working smoothly.
• Simple tools are often all you need.

Ready to make your bike shift like new? Let’s walk through exactly how to adjust your mountain bike’s derailleur step by step.

Your bike’s gears are what let you conquer hills and cruise flats. But what happens when they start acting up? A skipping chain or a gear that just won’t engage can turn a fun ride into a chore. Thankfully, most derailleur issues aren’t permanent problems. With a few simple adjustments, you can get your mountain bike shifting smoothly again.

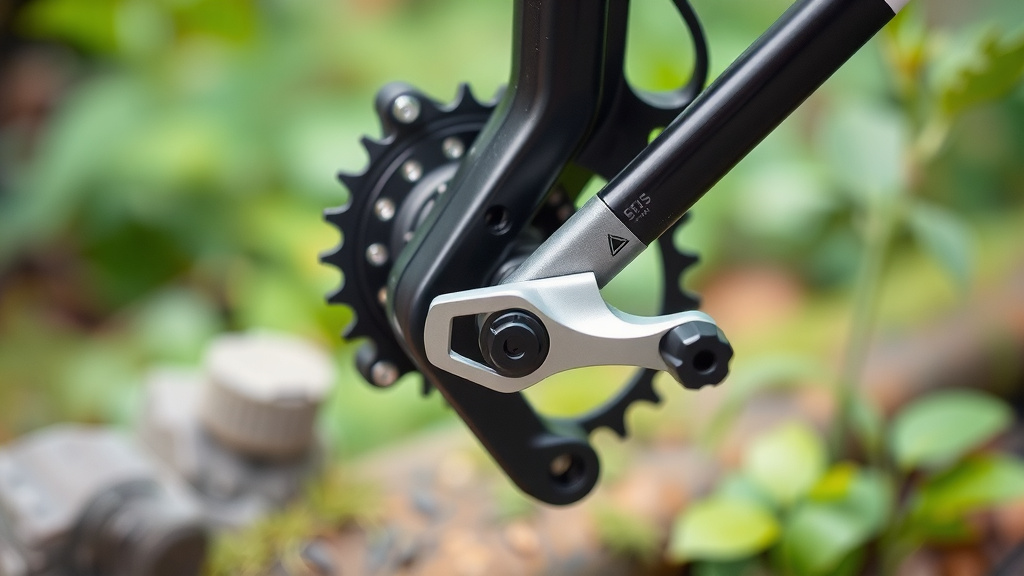

Fine-Tuning Your Mountain Bike’s Shifting System

Getting your derailleur tuned up is easier than you might think. It usually comes down to two main adjustments: the limit screws and the cable tension. These controls tell your derailleur where to stop and how precisely to move. Let’s break down how they work and how you can adjust them.

Understanding Your Derailleur’s Components

Before we start twisting any screws, let’s get acquainted with the parts. You have your front derailleur (for the chainrings up front) and your rear derailleur (for the cassette in the back). Both have similar adjustment points, but they control different aspects of your drivetrain. We’ll focus mainly on the rear derailleur, as it’s the one most commonly adjusted. We’ll focus mainly on the rear derailleur, but our guide to the best front derailleur for mountain bikes covers that component too.

The Rear Derailleur: Your Shifting Maestro

The rear derailleur is a bit of a marvel. It uses a spring-loaded arm to pull the derailleur cable. This arm moves the derailleur’s jockey wheels, guiding the chain onto different cogs. It has two key adjustment screws: the ‘H’ limit screw and the ‘L’ limit screw. It also relies heavily on cable tension for precise movements.

The ‘H’ Limit Screw: Keeping You on the Smallest Cog

The ‘H’ limit screw stands for ‘High’ gear. This screw prevents your derailleur from shifting the chain too far inward, which would cause it to fall off the smallest cog and into the spokes. You want this screw set so the derailleur can just reach that smallest cog without pushing it too hard.

The ‘L’ Limit Screw: Guarding the Largest Cog

The ‘L’ limit screw controls the ‘Low’ gear. This screw prevents the derailleur from shifting the chain too far outward, off the largest cog. If this isn’t set correctly, your chain might not even be able to reach your biggest gear. The goal is to allow access to that largest cog, but no further.

The Front Derailleur: Guiding the Chain Up Front

The front derailleur has a similar set of limit screws, typically labeled ‘H’ and ‘L’ as well. These control the extreme positions of the front derailleur cage, preventing the chain from dropping off the largest or smallest chainring. Adjusting the front derailleur also involves cable tension, but its movements are generally less sensitive than the rear.

When Do You Need to Adjust Your Derailleur?

Several signs point to your derailleur needing attention. If you hear clicking or grinding noises when you pedal, that’s a big clue. A chain that jumps between gears or refuses to land on a specific cog is another. Sometimes, shifting feels sluggish or requires extra effort from your shifter. If shifting is inconsistent, it’s time for a tune-up.

You might also notice shifting issues after a bike crash, even a minor one. Hitting the derailleur on a rock or root can easily knock it out of alignment. Even just general wear and tear can stretch cables over time, affecting tension and shifting accuracy. Many mechanics recommend checking your derailleur settings at least once a season or after major maintenance (National Bicycle League).

Gathering Your Tools for Derailleur Adjustment

You don’t need a full bike shop to make these adjustments. Most of the time, a few common tools will suffice. You’ll definitely need a Phillips head screwdriver or a hex wrench, depending on your derailleur model. You’ll also need your bike’s shifter and the derailleur itself.

Having a bike stand can make the job much easier, as it allows you to spin the pedals freely. If you don’t have one, you can get creative with an old chair or have a friend help lift the rear wheel. A clean drivetrain also helps you see exactly what’s going on. We found that a little degreaser and a rag go a long way!

Step-by-Step Guide to Adjusting Your Rear Derailleur

Let’s tackle the rear derailleur first. This is where most shifting complaints originate. We’ll start with the limit screws, then move on to cable tension.

Setting the Limit Screws: Defining the Gear Range

It’s best to do this with the bike in a stand so you can pedal. Make sure your chain is clean. A clean chain is essential for adjustment, and using the right chain lube can keep things running smoothly.

Adjusting the ‘H’ Limit Screw (Small Cog Side)

First, shift your bike into its highest gear, which means the smallest cog on your rear cassette. Look at the rear derailleur. The ‘H’ screw is usually marked. Turn it clockwise to move the derailleur inward, or counter-clockwise to move it outward. You want the upper jockey wheel of the derailleur to be perfectly aligned with the smallest cog. If it’s too far inward, the chain will fall off. If it’s too far outward, it might not shift onto the smallest cog smoothly.

Adjusting the ‘L’ Limit Screw (Large Cog Side)

Now, shift your bike into its lowest gear, the largest cog on your rear cassette. The ‘L’ screw controls how far outward the derailleur can move. You want the derailleur to be just aligned with the largest cog. If the chain is struggling to reach this gear, you might need to loosen the ‘L’ screw slightly (turn counter-clockwise). If the derailleur pushes the chain past the cog, tighten the ‘L’ screw (turn clockwise). Be very careful here; too much movement can send your chain into the spokes.

Tuning Cable Tension: The Key to Smooth Shifting

Once the limit screws are set, it’s time to dial in the cable tension. This is what makes each shift crisp and clean. Most shifters have a barrel adjuster, usually located where the cable enters the shifter or the frame. Some derailleurs also have a barrel adjuster.

Start by pedaling the bike and shifting through the gears. If your chain is slow to shift from a smaller cog to a larger cog (upward shift), you need more cable tension. Turn the barrel adjuster counter-clockwise to add tension. If the chain is slow to shift from a larger cog to a smaller cog (downward shift), you need less cable tension. Turn the barrel adjuster clockwise to reduce tension. You’re looking for a point where every shift feels immediate and smooth, with no hesitation or noise.

We found that making small, incremental adjustments to the barrel adjuster is key. Shift, listen, adjust, and repeat. Sometimes it takes a few tries to find that sweet spot. Many riders report that finding the right tension makes a world of difference in how their bike feels on the trail (Park Tool).

Front Derailleur Adjustments (When Needed)

While less common, the front derailleur can also benefit from adjustment. The process is similar: set the ‘H’ and ‘L’ limit screws and then adjust cable tension.

Setting Front Derailleur Limits

With the chain on the largest chainring and the smallest rear cog, adjust the ‘H’ limit screw on the front derailleur. You want just a few millimeters of clearance between the outer cage plate and the chain. Shift to the smallest chainring and largest rear cog. Adjust the ‘L’ limit screw. Again, aim for a few millimeters of clearance between the inner cage plate and the chain.

Front Derailleur Cable Tension

To adjust tension, you’ll typically use the barrel adjuster at the shifter or the frame. If shifting to the larger chainring is sluggish, increase tension (turn counter-clockwise). If shifting to the smaller chainring is sluggish, decrease tension (turn clockwise). Keep pedaling and shifting to find that smooth transition.

Maintenance Checklist for Smooth Shifting

Keeping your derailleur in top shape doesn’t take much. Here’s a quick list to help you stay on track:

• Clean your chain and cassette regularly.
• Check for cable fraying or damage.
• Periodically inspect your derailleur hanger for bends.
• Listen for any new clicking or grinding noises.
• Make minor tension adjustments as needed.
• Revisit limit screw settings annually or after impacts.

Conclusion

You’ve now got the knowledge to fine-tune your mountain bike’s derailleur and get your gears shifting smoothly again. Remember, it often comes down to adjusting the limit screws to set your gear range and fine-tuning cable tension for precise shifts. Don’t be discouraged if it takes a few tries; patience is key!

With these adjustments, you’ll enjoy quieter rides, easier climbs, and more control on the trail. Take your bike for a spin and notice the difference. If you’re still experiencing issues or feel unsure, consider visiting your local bike shop for a professional tune-up. Happy trails!

Frequently Asked Questions

How do I know if my derailleur needs adjusting?

You’ll typically hear clicking or grinding noises when pedaling, or notice the chain skipping or hesitating to shift into certain gears. Sluggish shifting or a chain that falls off the cassette are also clear signs your derailleur needs attention.

What’s the difference between the ‘H’ and ‘L’ limit screws?

The ‘H’ limit screw controls the derailleur’s movement towards the smallest cog (highest gear), preventing the chain from falling off the cassette towards the spokes. The ‘L’ limit screw controls movement towards the largest cog (lowest gear), ensuring the chain can reach and stay on the biggest gear.

Can I adjust my derailleur without a bike stand?

Yes, you can. You can prop your bike up using an old chair or ask a friend to lift the rear wheel for you while you pedal. It might be a bit more awkward, but it’s definitely achievable with some care.

How often should I check my derailleur settings?

It’s a good practice to check your derailleur settings at least once a season, or after your bike has been in a minor crash or had its cables replaced. Listening for unusual noises during rides is also a great way to catch issues early.

My chain is slow to shift to a larger cog, what’s wrong?

This usually means you need more cable tension. Find the barrel adjuster on your shifter or derailleur and turn it counter-clockwise. Make small adjustments, pedal, and test the shift again until it feels crisp and immediate.
