You can absolutely build your own mountain bike jump out of wood! With the right planning and materials, you can create a fun jump in your backyard. We found that using simple lumber and basic tools makes this a doable DIY project for most riders. You’ll need to consider the size and shape of your jump carefully.

Building a jump is a great way to get more airtime and practice your skills. It’s more affordable than buying a pre-made ramp. Plus, you get the satisfaction of building something yourself! We found that many riders start with smaller, simpler jumps and work their way up. Safety should always be your top priority when constructing and riding.

TL;DR:

• Yes, you can build a wooden mountain bike jump.
• Plan your jump size and shape carefully.
• Use common lumber and basic tools.
• Safety is the most important factor.
• Start with a simpler design first.

Ready to get started? Let’s walk through exactly how to build your very own wooden mountain bike jump, step by step.

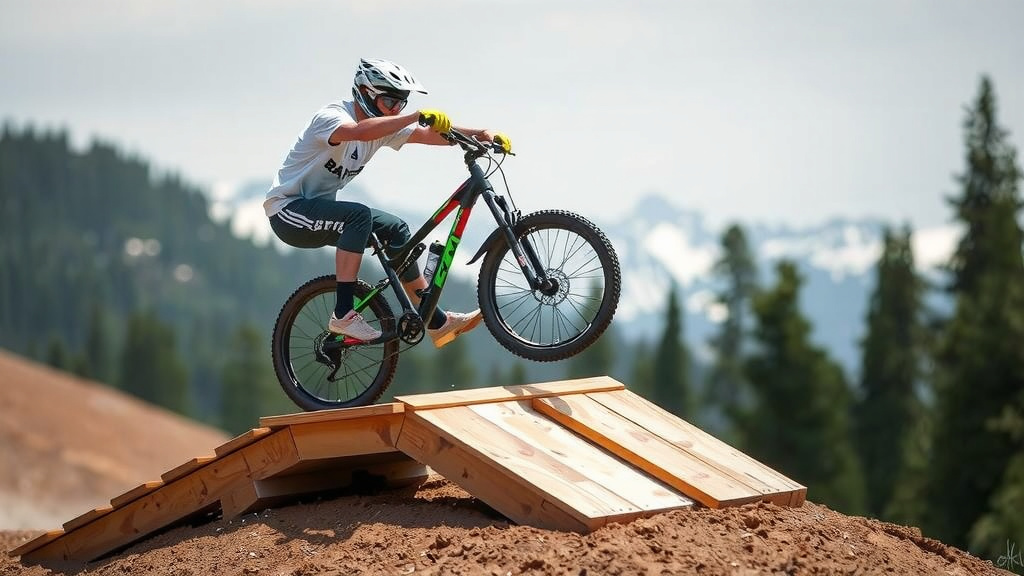

Constructing Your Wooden Mountain Bike Jump

You’re ready to build your very own wooden mountain bike jump! It sounds like a big project, but with a solid plan, it’s totally doable. We’ve seen many riders successfully build their own ramps. It really comes down to careful planning and using the right materials. This guide will walk you through the process so you can start catching some air safely.

Designing the Perfect Jump for You

Before you even pick up a hammer, you need to design your jump. Think about your skill level and the space you have. A good starting point is a simple kicker ramp. This is a straightforward ramp that launches you upwards. Many riders start with these and then move on to more complex designs.

Assessing Your Space and Skill Level

How much room do you have in your yard? Measure the area carefully. Also, be honest about your riding skills. Are you just starting out, or are you looking to clear bigger gaps? We found that starting small is always the best approach. A small, well-built jump is better than a huge, dangerous one.

Choosing Your Jump’s Style and Size

There are a few common styles of wooden jumps. The simplest is the kicker, a basic ramp shape. You can also build a table-top jump, which has a flat section between the takeoff and landing. For beginners, a kicker is usually the best bet. Keep the height manageable at first. For a beginner kicker, a height of 1 to 2 feet is a good starting point. The length of your takeoff and landing should be proportional to the height.

Kicker Jump Basics

A kicker ramp typically consists of a curved or angled takeoff. This curve helps launch you smoothly. The angle of the takeoff is important. A steeper angle sends you higher and further. A gentler angle is more forgiving. We found that a consistent radius curve is ideal for a smooth ride.

Table-Top Jump Considerations

Table-tops are wider and offer a flat deck between the take-off and landing. This flat section makes them more forgiving if you don’t quite clear them. They also give you a moment to regain balance in the air. However, they require more space and materials.

Gathering Your Materials and Tools

Once you have your design, it’s time to gather what you need. You don’t need a huge workshop for this. Basic tools and common lumber will do the trick. We found that sturdy materials are key to a safe and long-lasting jump.

Essential Tools You’ll Need

You’ll need some basic woodworking tools. A tape measure is essential for accurate cuts. A saw, like a circular saw or a hand saw, will be used for cutting wood. You’ll also need a drill for making pilot holes and driving screws. Safety glasses are a must-have for protecting your eyes. Don’t forget a pencil for marking your measurements.

Lumber Recommendations

Pressure-treated lumber is a great choice for the main structure. It resists rot and insects, making your jump last longer outdoors. For the frame, 2x4s are common. For the ramp surface, plywood is often used. We found that 3/4-inch thick exterior-grade plywood holds up well. You’ll also need deck screws, which are designed for outdoor use and resist corrosion.

Lumber Quantity Estimate (for a small kicker ~2ft tall, 4ft wide)

Here’s a general idea of what you might need. This can vary based on your specific design.

Item	Approximate Quantity
2×4 Lumber (for frame)	10-15 pieces (8ft length)
3/4 inch Plywood (for surface)	2-3 sheets (4x8ft)
Deck Screws (2.5 inch)	1-2 lbs box
Deck Screws (1.5 inch)	1/2 lb box

Always buy a little extra lumber. It’s better to have too much than too little. Mistakes can happen, and extra material is helpful.

Building Your Wooden Jump: Step-by-Step

Now for the fun part – building! We’ll focus on a simple kicker ramp here. Remember to work safely and measure twice, cut once.

Constructing the Frame

Start by building the basic triangular frame. Cut your 2x4s to create the sides of the ramp. You’ll want two identical triangular sides. The base of the triangle will be the footprint of your ramp on the ground. The height of the triangle will be the height of your jump. Connect these two triangular frames with crossbeams using more 2x4s. Make sure everything is square and sturdy. We found that adding extra bracing at the base increases stability.

Creating the Ramp Surface

Next, you’ll attach the plywood surface. Cut your plywood sheets to fit the shape of your frame. Start attaching the plywood to the 2×4 frame using your deck screws. Make sure the screws are countersunk so they don’t stick out. Overlap the plywood sheets slightly if you need to cover a larger area. We found that starting at the bottom and working your way up makes it easier to get a smooth curve.

Finishing Touches and Safety Checks

Once the surface is attached, run your hands over it. Feel for any sharp edges or protruding screws. Sand down any rough spots. Make sure the entire structure is solid and doesn’t wobble. Secure the jump to the ground if necessary, especially on uneven terrain. Many experts advise checking the structural integrity regularly (CDC).

A Quick Safety Checklist Before You Ride:

• Are all screws countersunk and flush with the surface?
• Is the ramp stable and free of wobbling?
• Are there any sharp edges or splinters?
• Is the landing area clear and smooth?
• Is the jump appropriate for your current skill level?

Conclusion

You’ve learned how to build your own wooden mountain bike jump! Remember, careful planning and sturdy construction are key. We found that starting with a simple kicker design makes the project manageable for most riders. Always prioritize safety by using the right materials and performing thorough checks. Now that you have the steps, it’s time to gather your tools and start building. Your backyard adventures await!

Frequently Asked Questions

How do I make sure my wooden jump is safe for riding?

A safe jump starts with a solid build. Always countersink your screws so they are flush with the surface. Double-check that the entire structure is stable and free of wobbling. Regularly inspect for any sharp edges or splinters that could cause injury.

What’s the best wood to use for a mountain bike jump?

Pressure-treated lumber is your best bet for the frame. It holds up well against moisture and insects, extending the life of your jump. For the ramp surface, exterior-grade plywood, at least 3/4-inch thick, is recommended for durability and a smooth ride.

Can I build a jump on a slope or uneven ground?

Building on uneven ground can be tricky but doable. You’ll need to level the base as much as possible before constructing the frame. Consider adding extra support beams or anchoring the jump securely to prevent shifting.

How long will a wooden jump typically last outdoors?

With proper construction using pressure-treated wood and exterior-grade materials, your jump can last for several years. Regular maintenance, like checking for rot or loose screws, will help prolong its lifespan.

What’s the difference between a kicker and a table-top jump?

A kicker is a simple ramp that launches you upwards. A table-top jump has a flat section between the takeoff and landing. Table-tops are generally more forgiving for riders who might not clear the full gap, but they require more space and materials to build.
