Build Kayak Outriggers: A Step-by-Step Guide

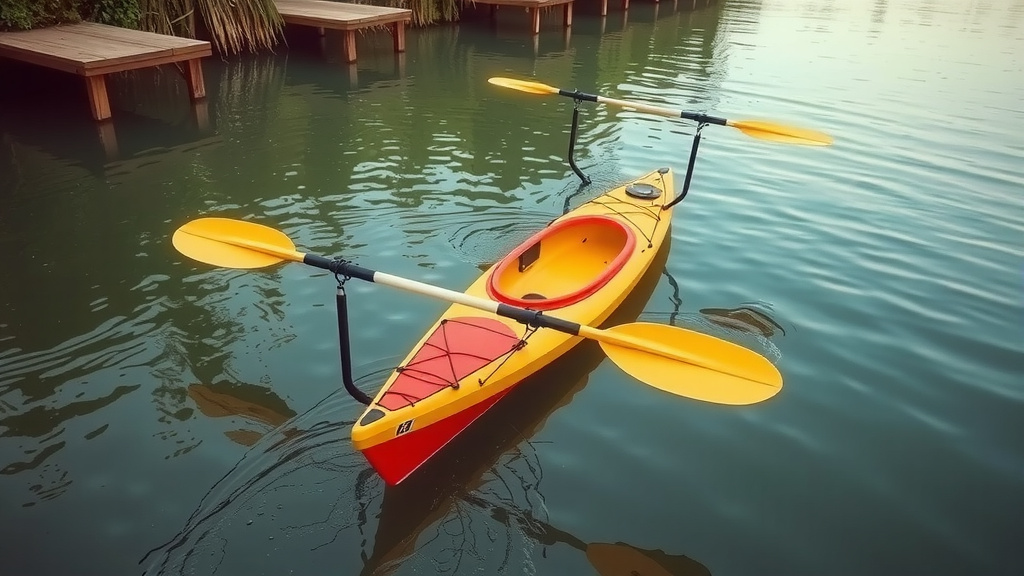

Crafting Your Kayak Outrigger System

Building your own kayak outriggers is a rewarding project. It’s a smart way to add stability without breaking the bank. You’ll get a steadier platform for fishing, photography, or just enjoying your time on the water. We’ll walk you through the process, from choosing materials to final assembly.

Understanding Kayak Outrigger Components

Before you start building, let’s look at the main parts of an outrigger system. Understanding these pieces will make the construction much clearer. You’re essentially creating outrigger ‘amas’ (the floats) connected to your kayak by ‘akas’ (the beams).

The Floats (Amas)

These are the buoyant parts that sit in the water. For a DIY project, you have several good options. Many people use PVC pipes, sealed at both ends. You can also find pre-made pontoon-style floats. The size of your amas will determine how much extra stability you gain. Larger amas offer more stability but can create more drag.

The Connecting Arms (Akas)

These are the beams that connect the amas to your kayak. They need to be strong and rigid. Wood, like hardwood or marine-grade plywood, is a common choice. You can also use sturdy aluminum tubing. The length of your akas will determine how far out your amas sit. This distance is key to your stability. A good starting point is to have the amas about 2-3 feet away from the kayak hull.

The Mounting Hardware

This is how you attach the akas to your kayak. You’ll need a way to securely fasten them without damaging your kayak. Many DIYers use a system of clamps or bolts. Ensure whatever method you choose is robust and easy to adjust if needed.

Materials and Tools You’ll Need

Gathering your supplies before you begin makes the building process smoother. You don’t need a full workshop for this project. Basic tools and readily available materials are all you really need.

Essential Materials

• PVC pipes: Schedule 40 PVC is a good, durable choice. Get caps for sealing.
• Wooden beams or aluminum tubing: For your akas. Marine-grade plywood is also an option.
• Fasteners: Stainless steel bolts, nuts, and washers are recommended for corrosion resistance.
• Clamps or brackets: To attach akas to your kayak.
• Adhesive/Sealant: Marine-grade epoxy or silicone sealant for securing PVC caps.
• Optional: Paint or coating for wood protection.

Key Tools to Have on Hand

• Measuring tape: Accuracy is important here.
• Saw: To cut PVC pipes and akas to size. A hacksaw or PVC cutter works well.
• Drill with bits: For making holes for fasteners.
• Wrenches or socket set: For tightening bolts.
• Sandpaper: For smoothing edges.
• Safety gear: Gloves and eye protection are a must.

Step-by-Step: Building Your Outriggers

Let’s get down to building! This guide focuses on a common PVC pipe ama design. It’s practical and effective for most kayaks.

Constructing the Amas (Floats)

First, you need to prepare your buoyant floats. Measure and cut your PVC pipe to your desired length. A common length is 3-4 feet per ama. You want them long enough to provide good stability. Then, securely attach the end caps. Use a strong PVC primer and cement. Make sure they are completely sealed to prevent any water intrusion. Once dry, you can optionally fill them with foam for extra safety, although a good seal is usually sufficient.

Preparing the Akas (Connecting Arms)

Next, you’ll prepare the akas. Cut your chosen material (wood or aluminum) to the desired length. This determines how far your amas will extend from the kayak. A common length is around 3-4 feet. You’ll need to drill holes in the akas for attaching the amas and for mounting to the kayak. Ensure these holes are clean and precise for a secure fit.

Assembling the Ama-Ama Connection

Now, attach the amas to the akas. You can do this in a few ways. One common method is to drill holes through the PVC pipe and use bolts to secure it to the akas. Alternatively, you can create brackets that attach to the akas and then clamp onto the PVC pipe. Whichever method you choose, ensure the connection is strong and rigid. You don’t want any wobbling here.

Mounting the Outriggers to Your Kayak

This is a critical step. You need to attach the akas to your kayak securely. Many kayaks have pre-drilled holes or mounting points. If yours doesn’t, you might need to install some. Rail systems are a popular choice. They allow for easy adjustment and removal. You can also use robust clamps that grip the kayak’s gunwales. Always test your mounting system thoroughly. We found that using quick-release pins can make attachment and detachment very convenient.

Here’s a quick checklist for the assembly phase:

• Ensure amas are perfectly sealed.
• Cut akas to the correct, symmetrical length.
• Drill mounting holes accurately on akas.
• Securely attach amas to akas.
• Test kayak mounting system for sturdiness.

Testing and Adjusting Your New System

Once everything is built and attached, it’s time for testing. This is where you see how your hard work pays off. Safety is your top priority during this phase.

Initial Stability Checks

Start in calm, shallow water. Gently get into your kayak with the outriggers attached. Feel the stability. Do they feel secure? Are they providing the support you expected? Make small adjustments to the positioning of the akas if possible. You’re looking for a balanced and steady feel.

Making Fine-Tuned Adjustments

It’s rare to get it perfect on the first try. You might need to adjust the length of your akas or the position of your amas. If your kayak feels tippy, you might need to extend the akas further out or use larger amas. If it feels sluggish, you might need to trim them down a bit. Many experts suggest that proper adjustment can reduce drag significantly.

Considerations for Different Water Conditions

Your outriggers will behave differently in various conditions. In choppy water, you’ll appreciate the extra stability. In very calm conditions, they might add a bit of drag. Think about where you paddle most often. For serious offshore fishing, you might want a more robust setup. For casual lake paddling, a simpler design often suffices. Remember to always check marine safety guidelines for your area.
