How to Change Your Mountain Bike Derailleur

Last Updated on October 2, 2026 by Md Arifur rahman

Yes, you can definitely change your mountain bike’s derailleur yourself. It might seem a bit intimidating at first, but with the right tools and a little patience, you can tackle this common bike repair. We found that **properly adjusting your gears** can make a huge difference in your ride.

When your derailleur is worn out or damaged, it affects your shifting performance. You might notice **sloppy gear changes** or chains that slip. Replacing it is often more cost-effective than constantly trying to fine-tune a faulty one. Many riders find this a **rewarding DIY task**.

• Assess if your derailleur needs replacing.
• Gather the necessary tools: Allen wrenches, cable cutters.
• Understand how to disconnect and reconnect the shift cable.
• Learn to properly align the new derailleur.
• Adjust the limit screws for smooth shifting.

Ready to get your shifting back in top shape? Let’s walk through exactly how to change your mountain bike derailleur step by step.

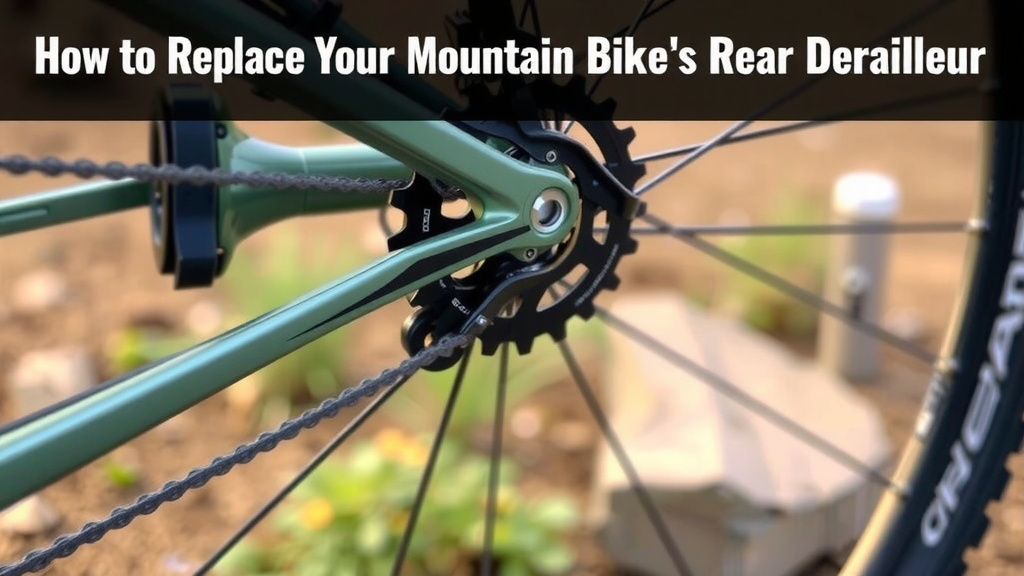

Replacing Your Mountain Bike’s Rear Derailleur

Swapping out your mountain bike’s rear derailleur might sound like a big job. But, with a bit of guidance, you can get your bike shifting smoothly again. We found that a worn-out derailleur is a common culprit for poor shifting. This guide will walk you through each step so you can tackle it confidently.

When is it Time for a New Derailleur?

Before you start, it’s good to be sure a new derailleur is what you need. Are your gears skipping? Does the chain seem to jump between cogs? You might also notice a lot of play in your shifting. Sometimes, a bent derailleur hanger is the issue, not the derailleur itself. However, if your derailleur has seen better days, has visible damage, or is just not responding to adjustments, replacement is often the best fix. Many mechanics suggest replacing a derailleur if it’s significantly bent or if the clutch mechanism (on newer models) feels weak.

Tools You’ll Need for the Job

Gathering the right tools makes the process much smoother. You’ll need a set of Allen wrenches, usually ranging from 4mm to 6mm. A pair of cable cutters is essential for trimming the shift cable cleanly. You might also need a small Phillips head screwdriver for some derailleur models and a torque wrench if you want to be precise with bolt tightness. A bike stand is a huge help, though not strictly necessary.

Step-by-Step Derailleur Replacement

1. Prepare Your Bike

First, get your bike into a good working position. A bike stand is ideal here. If you don’t have one, you can flip your bike upside down, resting it on its handlebars and saddle. Just be careful not to damage your shifters or brake levers. It’s also a good idea to shift your chain onto the smallest cog on your cassette before you start. This reduces tension on the cable and makes removal easier.

2. Disconnect the Shift Cable

Locate where the shift cable enters your derailleur. You’ll see a pinch bolt holding it in place. Loosen this bolt with your Allen wrench. Once the bolt is loose, you should be able to pull the cable free from the derailleur’s grasp. Sometimes, the cable can be a bit stiff, so a gentle wiggle might be needed. Ensure you don’t lose the cable end cap if it’s still attached.

3. Remove the Old Derailleur

The derailleur is typically attached to your bike’s frame via a single bolt, usually located on the rear of the bike where the chainstay meets the seatstay. This is often called the derailleur hanger. Use your Allen wrench to loosen and remove this bolt. The old derailleur should now be free to come off the bike. Take note of how it was positioned; this will help when installing the new one. Protecting your frame is also important, so consider a chainstay protector.

4. Install the New Derailleur

Line up your new derailleur with the mounting point on the derailleur hanger. Thread the mounting bolt into the hanger by hand first to avoid cross-threading. Once it’s snug, use your Allen wrench to tighten it. Many derailleur manufacturers recommend a specific torque value for this bolt. We found that overtightening can damage the hanger, while undertightening can lead to shifting issues.

Attaching the Shift Cable to the New Derailleur

Now, thread your shift cable through the entry point on the new derailleur. Pull the cable taut, ensuring there’s no slack. You’ll want to attach it under the pinch bolt. For now, just get it somewhat secure. You’ll fine-tune the tension later. Many guidelines suggest pulling the cable with pliers to get it as tight as possible before tightening the pinch bolt (Shimano).

5. Adjusting Limit Screws

Your derailleur has two small screws, often labeled ‘H’ and ‘L’ for High and Low gear. These are the limit screws. They control how far the derailleur can move inward and outward, preventing your chain from dropping off the smallest or largest cog. You’ll need to set these carefully. The ‘H’ screw limits upward (smallest cog) movement, and the ‘L’ screw limits downward (largest cog) movement. This is a critical step for safe shifting.

Setting the High (H) Limit Screw

With the chain on the smallest cog, adjust the ‘H’ screw. You want the jockey wheel on the derailleur to align perfectly with the smallest cog. Turn the screw until the derailleur is just about to push the chain off the cog. We found that a tiny bit of play is okay, but too much can cause the chain to drop.

Setting the Low (L) Limit Screw

Now, shift your bike into its lowest gear (largest cog). Adjust the ‘L’ screw so that the jockey wheel is aligned with the center of the largest cog. Again, you want it to be snug but not forcing the derailleur. If you adjust this screw too far inward, your chain might not reach the largest cog. If you adjust it too far outward, the chain could fall off the inside of the cassette.

6. Cable Tension and Fine-Tuning

This is where the magic happens, and it might take a few tries. Reconnect the shift cable to the derailleur’s pinch bolt. Begin pedaling your bike. Shift through your gears. You’ll use the barrel adjuster, usually found on your shifter or inline along the cable housing, to fine-tune the cable tension. Turning the barrel adjuster counter-clockwise tightens the cable, while turning it clockwise loosens it. You’re looking for crisp shifts into each gear without hesitation or over-shifting.

7. Final Checks and Test Ride

Once you think everything is dialed in, it’s time for a quick test ride. Shift through all your gears, both uphill and downhill. Listen for any strange noises or skipping. Make small adjustments to the barrel adjuster as needed. Many cyclists recommend testing shifts under light load, like a gentle pedal stroke, to ensure accuracy. If your shifts are still a bit sluggish, try tightening the cable tension slightly with the barrel adjuster.

Quick Derailleur Replacement Checklist

• Shift to smallest cog.
• Loosen and remove shift cable.
• Unbolt and remove old derailleur.
• Bolt on new derailleur.
• Attach and tension shift cable.
• Adjust limit screws (H & L).

Conclusion

You’ve successfully navigated the process of changing your mountain bike’s rear derailleur! Remember, patience is key, and taking your time with each step ensures a smoother installation. We found that carefully adjusting the limit screws and cable tension are the most critical parts for achieving crisp shifting. Don’t be afraid to make small adjustments on your test ride. Now, get out there and enjoy those perfectly shifting gears on your next trail adventure!

Frequently Asked Questions

How do I know if my derailleur hanger is bent?

A bent derailleur hanger can cause similar shifting problems to a bad derailleur. You can often spot a bend by eye when looking at the derailleur from behind the bike. If the derailleur cage isn’t parallel to the cassette cogs, the hanger might be bent. It’s best to use a specific derailleur alignment tool for accuracy.

Can I reuse my old shift cable?

While you can sometimes reuse an old shift cable if it’s in good condition, it’s generally recommended to replace it when you replace the derailleur. Cables stretch and fray over time, which can lead to poor shifting performance even with a new derailleur. New cables are inexpensive and ensure optimal performance.

What happens if I don’t set the limit screws correctly?

Incorrectly set limit screws can cause your chain to shift off the cassette. If the ‘H’ limit screw is too loose, your chain could fall off the smallest cog, potentially causing damage. If the ‘L’ limit screw is too loose, your chain could fall off the largest cog. This can lead to frustrating and potentially dangerous situations on the trail.

My new derailleur is making noise, what could be wrong?

Noise often points to a cable tension issue. If the shifting is sluggish or noisy when shifting to larger cogs, you might need to increase cable tension using the barrel adjuster. If it’s noisy when shifting to smaller cogs, you might need to decrease tension. Also, double-check that all mounting bolts are securely tightened.

How tight should I make the derailleur mounting bolt?

You want the derailleur mounting bolt to be snug, but it’s best to use a torque wrench if possible. Most manufacturers recommend a torque of around 5-10 Nm. Overtightening can strip the threads on the derailleur hanger, which is a much more serious problem to fix. If you don’t have a torque wrench, tighten it firmly until it stops, then give it just a slight extra turn.
