Upgrade Your MTB: How to Convert to Disc Brakes

Last Updated on October 7, 2026 by Md Arifur rahman

Yes, you absolutely can convert your mountain bike to disc brakes, and it’s a fantastic upgrade for better stopping power. Many older bikes didn’t come with them, but thankfully, converting is quite achievable. You’ll get much improved performance in all weather conditions.

This upgrade involves replacing your current braking system, which might be rim brakes or older mechanical discs. You’ll need to make sure your bike’s frame and fork have the correct mounts for disc brake calipers. This is the most important factor to check before you buy any parts. It’s a rewarding project for any bike enthusiast.

• Check your frame and fork for disc brake mounts.
• You’ll likely need new wheels with disc brake hubs.
• New brake levers and cables are usually required.
• Disc brake calipers and rotors are essential.
• Some minor adjustments might be needed.

Let’s walk through exactly what you need to consider and how to get your mountain bike rolling with disc brakes.

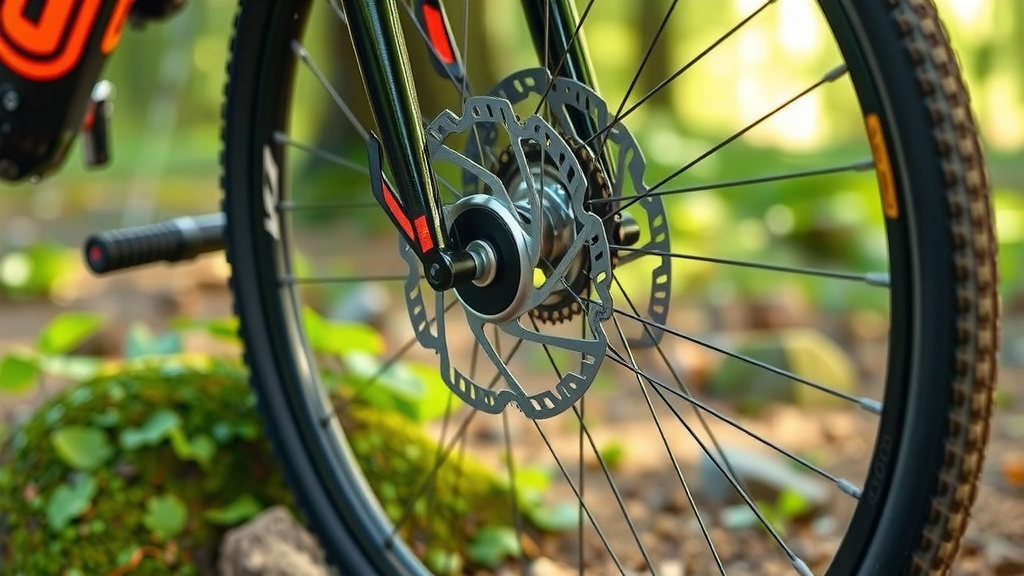

Upgrading Your Ride: Switching to Disc Brakes on Your Mountain Bike

Converting your mountain bike to disc brakes is a smart move. You’ll experience a noticeable boost in stopping power. This means more control and confidence on the trail. It’s a project many cyclists tackle. Let’s break down exactly what you need to know.

Assessing Your Bike’s Compatibility

Before you buy a single part, you must check your bike’s frame and fork. This is the absolute **most critical step**. Disc brakes require specific mounting points. Your frame needs a disc brake mount near the rear wheel. Your fork needs a similar mount near the front wheel.

Where to Find Disc Brake Mounts

Look closely at your bike’s frame and fork. For the rear, the mount is usually on the chainstay or seatstay. It’s a small, often reinforced tab with threaded holes. For the front fork, the mount is typically on one of the legs, often on the outside.

What if you don’t see these mounts? This means your bike is not designed for disc brakes. Trying to force them on can be unsafe and may damage your frame. Many older bikes were made before disc brakes became standard. You might need to consider a newer bike if yours lacks these essential mounts.

Understanding Different Mount Standards

There are a few common disc brake mount standards. The most prevalent is the International Standard (IS) mount. This mount uses two bolts and is often found on older bikes. Then there’s the Post Mount (PM) standard. This is more common on modern bikes and mounts the caliper directly to the frame/fork.

You’ll also see the Flat Mount standard, primarily on road and gravel bikes, but it’s appearing on some mountain bikes too. Knowing which standard your new brakes use, and which your frame/fork accept, is important. Adapters are sometimes available, but they can add complexity and potential points of failure. It’s usually best to match your brake system to your frame’s existing mounts if possible. Many experts recommend finding components designed for your specific frame standard for the cleanest installation (BikeRadar).

Gathering Your Disc Brake Components

Once you’ve confirmed your bike can accept disc brakes, it’s time to gather parts. You’ll need more than just the calipers and rotors. Think of it as a whole new braking system.

Disc Brake Calipers and Rotors

These are the heart of your new braking setup. Calipers clamp onto rotors to slow your wheels. Rotors attach to your wheel hubs. You’ll need one caliper and one rotor for each wheel. Rotors come in different sizes, typically 160mm, 180mm, or 203mm. Larger rotors offer more stopping power. Make sure your frame and fork can accommodate the rotor size you choose. Check the labels or manuals that came with your bike, or consult a bike shop.

Wheels and Hubs: The Disc Brake Foundation

This is often the biggest hurdle. Your current wheels likely have hubs designed for rim brakes. You need hubs specifically built for disc brakes. These hubs have a 6-bolt pattern or a CenterLock system to attach the rotors.

What are your options? You can buy a new set of wheels. This is the most straightforward but often the most expensive route. Alternatively, you can potentially replace just the hubs on your existing wheels, provided the rims are compatible. This requires specialized tools and knowledge. We found that purchasing new, compatible wheels simplifies the process considerably. Ensure your new wheels have the correct axle type for your bike (e.g., quick release or thru-axle). You can buy a new set of wheels, which is the most straightforward but often the most expensive route.

Brake Levers and Shifters

Disc brake systems often require different brake levers than rim brakes. Hydraulic disc brakes, in particular, need levers designed to work with the brake fluid lines. If you have an older bike with integrated shifter/brake levers (STI levers on road bikes, or similar on mountain bikes), you’ll likely need to replace these too.

Many modern mountain bikes use shifters and brake levers that are separate units. If yours are separate, you might only need new brake levers. If they are integrated, replacing them is a bigger job. Compatibility between shifters and brake levers is key. For example, using 10-speed shifters with 11-speed brake levers might not work correctly. Always check compatibility charts from the manufacturer.

Cables and Housing (for Mechanical Disc Brakes)

If you opt for mechanical disc brakes, you’ll need new brake cables and housing. These are similar to what you use for rim brakes, but ensure they are long enough to route cleanly from your new levers to the calipers. For hydraulic disc brakes, you’ll need hydraulic brake lines instead of cables. These lines come pre-filled or require bleeding after installation.

The Installation Process: What to Expect

Installing disc brakes can range from relatively simple to quite involved. It depends on your mechanical skill and the specific components you choose.

Mounting the Calipers and Rotors

First, attach the rotors to your new disc-compatible hubs. Use the correct bolts and torque them to spec. Then, mount the brake calipers to the frame and fork using the designated mounts. Don’t tighten them fully yet; you’ll need to adjust their position.

Running the Lines and Connecting Them

Route your brake cables (mechanical) or hydraulic lines (hydraulic) from the levers to the calipers. Secure them neatly along your frame using zip ties or cable guides. For mechanical brakes, connect the cable to the caliper’s actuating arm. For hydraulic brakes, you’ll connect the brake lines, which usually involves special fittings.

Adjusting and Testing

This is where you fine-tune everything. With the wheel installed, spin it and adjust the caliper position so the rotor spins freely without rubbing. Squeeze the brake lever. It should feel firm and provide strong stopping power. For hydraulic brakes, you may need to bleed the system to remove air bubbles. This ensures optimal performance. Always test your brakes thoroughly in a safe, controlled area before hitting the trails.

A Quick Checklist for Your Conversion

Here’s a handy list to keep you on track:

• Verify frame and fork disc brake mount compatibility.
• Select appropriate disc brake calipers and rotors.
• Ensure you have or will get disc-brake-compatible wheels/hubs.
• Obtain correct brake levers (and possibly shifters).
• Gather necessary cables, housing, or hydraulic lines.
• Plan for potential tools and a clean workspace.

Conclusion

Converting your mountain bike to disc brakes is a rewarding project. You’ve learned the critical first step: checking your frame and fork for mounts. We covered gathering the right components, from wheels and hubs to calipers and levers. The installation process requires careful attention to detail, especially during adjustment and testing. By following these steps, you’re well on your way to enjoying superior stopping power on your rides. You’ve got this! Your next step is to gather your tools and parts to begin the conversion.

Frequently Asked Questions

Will my old mountain bike frame support disc brakes?

The most important factor is whether your frame and fork have dedicated disc brake mounts. These are specific tabs with threaded holes. If you don’t see them, your bike is likely not compatible, and attempting an unsafe modification is not recommended.

Can I use my current wheels with disc brakes?

Probably not. Most older wheels have hubs designed for rim brakes, not disc rotors. You will likely need new wheels or at least new hubs that are compatible with disc brake mounting systems like 6-bolt or CenterLock.

What’s the difference between mechanical and hydraulic disc brakes?

Mechanical disc brakes use cables, similar to rim brakes, for actuation. Hydraulic disc brakes use fluid-filled lines, offering more power and better modulation. Hydraulic systems generally require more advanced installation and maintenance, like bleeding the lines.

How do I know what size rotors to get?

Rotor size (e.g., 160mm, 180mm) affects stopping power. Check your frame and fork specifications or consult your bike’s manual to see the maximum rotor size they can accommodate. Larger rotors generally provide more braking force.

Is it cheaper to convert to disc brakes or buy a new bike?

For older bikes that already lack disc mounts, buying a new bike is often more cost-effective and safer. However, if your bike has the mounts and you’re comfortable with the parts needed, a conversion can be more affordable than purchasing a brand-new disc-equipped mountain bike.
