Build a PVC Kayak Stand: Easy DIY Project

Last Updated on July 29, 2026 by Jaxon Mike

Yes, you can absolutely make your own kayak stand from PVC pipe! It’s a surprisingly simple and affordable DIY project. You’ll end up with a sturdy rack to keep your kayak off the ground, protecting it and making it easier to access for your next adventure. This project is all about maximizing convenience without breaking the bank.

Building a PVC kayak stand is a fantastic way to address storage challenges. Many kayakers struggle with finding adequate space. This solution offers a practical, customizable storage system. It’s also lightweight, meaning you can move it around if needed. Plus, you get the satisfaction of building something yourself.

• Build a sturdy kayak stand from PVC pipe.
• It’s an affordable and easy DIY project.
• Protects your kayak and aids accessibility.
• Customizable for your specific kayak needs.
• A great storage solution for any kayaker.

Ready to get your kayak up and out of the way? Let’s walk through exactly how to build your own PVC kayak stand, step by step.

“`html

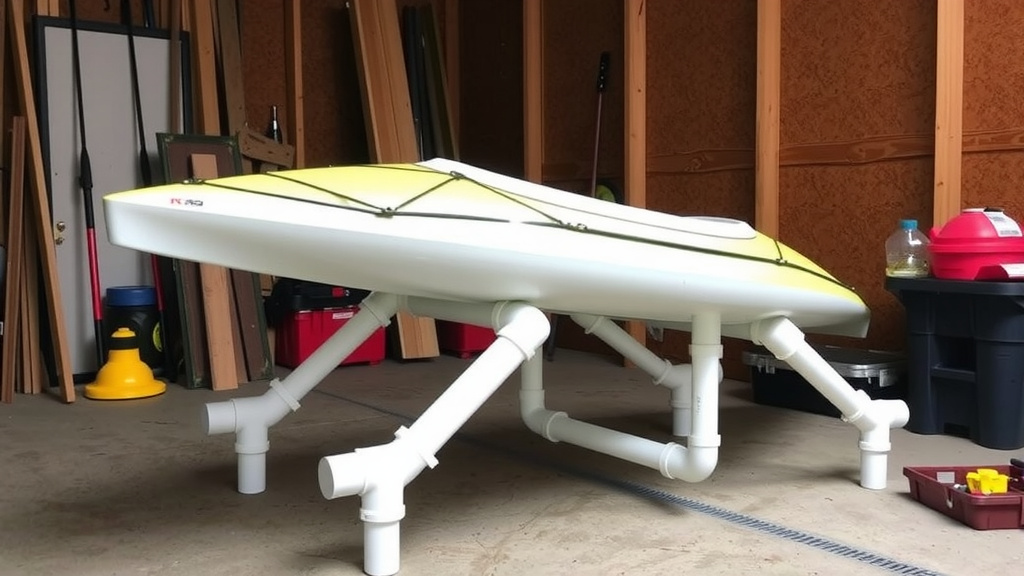

Building Your Own PVC Kayak Rack

You’re probably wondering if this is really achievable. Yes, you absolutely can build a sturdy kayak stand out of PVC pipe. It’s a project that costs very little and requires only basic tools. You’ll end up with a reliable place to store your kayak. It keeps it off the ground, preventing damage and making it easier to grab for your next outing.

Gathering Your PVC Stand Materials

Before we dive into cutting and assembling, let’s talk about what you’ll need. Having everything ready makes the process smooth. You don’t want to be halfway through and realize you’re missing a key fitting. Think of it like packing for a fishing trip; preparation is everything!

The Core Components: PVC Pipe and Fittings

The heart of your kayak stand will be PVC pipe. For a typical adult-sized kayak, you’ll likely need 1-inch or 1.5-inch schedule 40 PVC pipe. This thickness provides good strength. You can find this at most hardware stores. The amount you need depends on your design, but a few 10-foot lengths are usually a good starting point.

Next, you’ll need PVC fittings. These are the connectors that let you join pieces of pipe. You’ll want a variety. Common ones include:

• Tee fittings: These join three pieces of pipe at 90-degree angles.
• Elbows: These create 90-degree turns.
• Couplings: These join two pieces of pipe in a straight line.

The exact number and type of fittings will depend on the size and shape of your stand. It’s best to sketch out your design first, then count your fittings. Many people find they need more than they initially estimate. It’s always better to have a few extra on hand!

Essential Tools for Assembly

You won’t need a full workshop for this. A few basic tools will do the job nicely. You’ll definitely need a PVC pipe cutter or a hacksaw. A pipe cutter makes for cleaner, straighter cuts. Ensure your cuts are as square as possible. This helps the fittings seat properly.

You’ll also need a measuring tape for accuracy. A marker is helpful for marking your cut lines. While not strictly necessary for the stand’s structure, some people like to use sandpaper to lightly smooth the cut edges of the PVC. This makes for a neater finish.

Optional Comfort and Protection Add-ons

To make your stand even better, consider adding some padding. Kayak hulls can be delicate. You want to avoid any pressure points. Foam pipe insulation or pool noodles work wonders. You can cut these to size and slip them over the parts of the stand that will contact your kayak. This adds a layer of gentle cushioning. It protects your kayak’s finish.

Designing Your PVC Kayak Stand

The beauty of PVC is its customizability. You can design a stand that perfectly fits your kayak and your space. Think about the width of your kayak and its weight. A wider or heavier kayak will need a more robust design. Consider where you’ll store it, too. Will it be in a garage, a shed, or outdoors?

Basic Stand Styles to Consider

There are a few common designs that work very well. The simplest is a basic A-frame. This uses angled pieces to create a stable structure. Another popular option is a simple post-and-crossbar design. This can look a bit like a small, open shelf. For most kayaks, a stand that holds the kayak on its side is often the most space-efficient.

The Side-Storage Design

This design typically involves two upright posts connected by one or two horizontal bars. Your kayak rests on its side on these bars. This keeps the hull from being stressed. We found that a height of about 2-3 feet is usually comfortable for accessing the kayak. This also keeps it well off the ground. The width of the horizontal supports should be enough to cradle your kayak’s hull.

The J-Cradle Concept

Some designs use what are often called “J-cradles.” These are curved pieces of PVC that gently hold the kayak’s gunwales (the top edges). You can create these curves by heating the PVC slightly and bending it. However, this requires more skill and special tools. For a beginner, straight cradle supports are much easier to manage.

Planning for Stability and Load

Stability is key. You don’t want your stand wobbling or tipping. A wider base generally means more stability. Think about how the weight of the kayak will be distributed. Most designs will distribute the load across the PVC pipes and fittings. We found that using a combination of tee and elbow fittings creates a strong, stable frame. Adding cross-braces can further increase rigidity, especially for taller stands.

Step-by-Step PVC Kayak Stand Assembly

Now that you have your design and materials, let’s put it together. Take your time with measurements and cuts. Accuracy here prevents frustration later. Think of this like following a recipe; precise steps lead to a delicious result (in this case, a functional kayak stand!).

Measuring and Cutting Your PVC Pipes

Referencing your design sketch, carefully measure and mark your PVC pipes. Double-check your measurements before cutting. Using a PVC cutter or a fine-toothed hacksaw, make your cuts. Aim for straight, square cuts. This ensures a tight fit with your connectors. As mentioned, a light sanding of the cut edges can improve the fit and appearance.

Assembling the Frame with Fittings

Start by dry-fitting your pieces. This means putting the pipes and fittings together without glue. This allows you to check the fit and make any adjustments. Once you’re happy with how everything looks, you can begin to assemble permanently. PVC primer and cement are used for this. Apply the primer to both the pipe end and the inside of the fitting. Then, apply the cement to both surfaces. Quickly push the pipe into the fitting with a slight twist. Hold it for a few seconds to set. Work in a well-ventilated area when using PVC cement.

Many experts suggest working on one section of the stand at a time. For example, build the two base legs first. Then, connect them with the horizontal supports. This methodical approach helps ensure everything stays aligned. It’s less overwhelming than trying to connect too many pieces at once. Let each section set before moving on.

Adding Protective Padding

Once the main structure is assembled and the cement has cured (check the cement can for curing times, but generally 24 hours is recommended for full strength), it’s time for the padding. Cut your foam insulation or pool noodles to the required lengths. Slide them over the horizontal support pipes. You might need to slit them lengthwise to get them on easily. Secure them with tape or zip ties if they tend to slip.

A Quick Checklist for Your Build

To make sure you haven’t missed anything, here’s a quick rundown:

• Have you sketched out your design?
• Do you have enough PVC pipe and the correct fittings?
• Are your cutting tools ready and sharp?
• Will you use primer and cement for a strong bond?
• Did you remember padding for your kayak’s hull?
• Is your workspace well-ventilated for using cement?

By following these steps, you’ll have a custom-made kayak stand ready for action. It’s a smart, economical way to store your boat. Plus, you get the satisfaction of building it yourself!

“`

Conclusion

You’ve learned that building your own PVC kayak stand is a straightforward and budget-friendly project. You now have the knowledge to create a sturdy, custom storage solution. This DIY stand will keep your kayak safe and accessible. Get ready to enjoy more time on the water without storage worries. Your next adventure is just a well-built stand away!

Frequently Asked Questions

How strong is a PVC kayak stand?

A stand made from 1-inch or 1.5-inch Schedule 40 PVC pipe is surprisingly strong. When properly assembled with fittings and cement, it can easily support the weight of most kayaks. We found that designs with a wider base and good cross-bracing offer the most stability.

Can I make a PVC kayak stand for two kayaks?

Yes, you can absolutely scale up the design for a double kayak stand. You’ll need to use longer pipes for the base and potentially add more upright supports. Consider using thicker PVC pipe (like 2-inch) for added strength if you plan to store two kayaks.

What’s the best way to protect my kayak on the PVC stand?

The best method is to add padding where your kayak makes contact with the stand. Foam pipe insulation or pool noodles are excellent choices. Simply cut them to fit the support arms and slide them on. This creates a soft surface that prevents scratches and pressure points on your kayak’s hull.

How tall should my PVC kayak stand be?

A height of 2 to 3 feet is usually ideal. This keeps your kayak safely off the ground, protecting it from moisture and potential damage. It also makes it comfortable to lift your kayak onto the stand and take it off. Adjust the height based on your own comfort and the size of your kayak.

Do I need to glue PVC parts together, or can I just push them in?

While you can dry-fit the pieces to check your design, using PVC primer and cement is highly recommended for a durable and stable stand. Pushing the pieces together without glue will not create a permanent bond and the stand could easily come apart under the kayak’s weight. Always work in a well-ventilated area when using cement.
